Compact
Our ultra-compact gimbal, measuring just 71x71x71 mm. and weighing a mere 180 g, offers powerful performance in a tiny package.
Capable
With 20x optical zoom, 2x digital zoom, and an advanced Electro-Optical camera, our gimbal delivers exceptional surveillance capabilities.
Visionary
Equipped with the most sensitive thermal vision camera in its size category, provides unparalleled detection and clarity.
Night & Day
Gimbal combines both thermal and EO cameras for day and night operations.
x20 optical zoom
The built-in dual-EO camera offers up to 20x optical zoom or up to 40x with digital zoom.
Smallest and Lightest
The gimbal weights only 180g and is the lightest direct drive gimbal in the market.
Not just a Gimbal
We provide the whole system not only mechanics. Together with a hardware there comes software seamlessly integrating gimbal into the most popular GCS software.
Best thermal camera in the market
NightScout comes with a thermal camera, the most sensitive on the market in this size.
Rugged and Reliable
Machined aluminium alloy and carbon fiber parts ensures reliable and long service for our gimbals.
Optics
The NightScout gimbal set new standard for size, weight and performance to meet the most demanding expectations of 2-axis stabilized gimbals with dual-EO and best in class thermal imagers. Our gimbal comes with advanced image processing.
The built-in dual-EO camera ensures up to 40x zoom (x20 optical and x2 digital), along with onboard recording and transmission to the ground control station. In addition to the EO camera, the gimbal offers a high-performance thermal camera with 640×480 resolution. All this comes in a light, compact module with low power consumption.

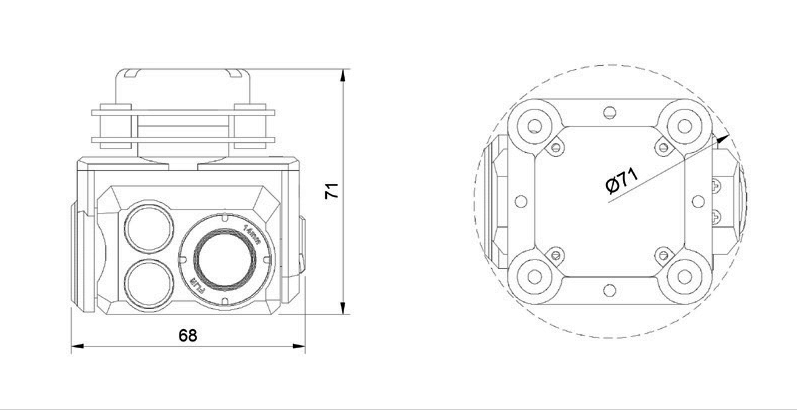

Dimensions

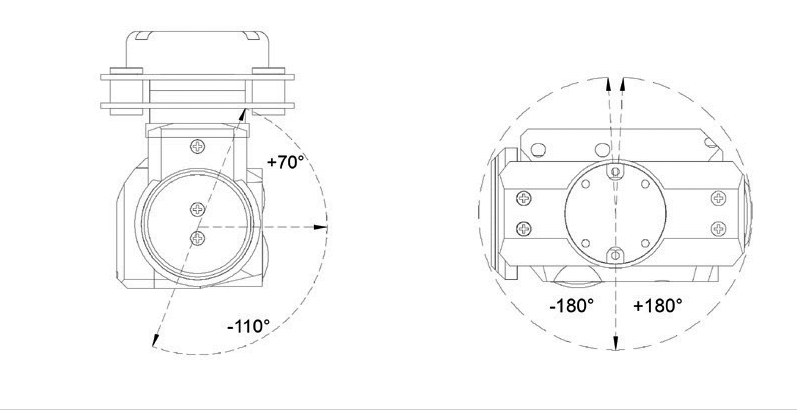

Camera Panning Angles
EO camera
x2 16MP Sensor
Horizontal field of view
60° - 3° (optical)
1.5° (digital)
Resolution
1280 × 960px
(960p)
Thermal LWIR camera
Horizontal field of view
18mm lens HFOV 24°
Resolution
640 x 480px
Sensitivity
Up to <=20mK
(selectable)
Video
Snapshot from video recorded
on the ground taken from 3 km.
Thermal
Thermal camera snapshot
In Action
x20 optical zoom
In this picture, you can see what the x20 optical zoom of objects from 2.5 km away looks like.
